Model 5100

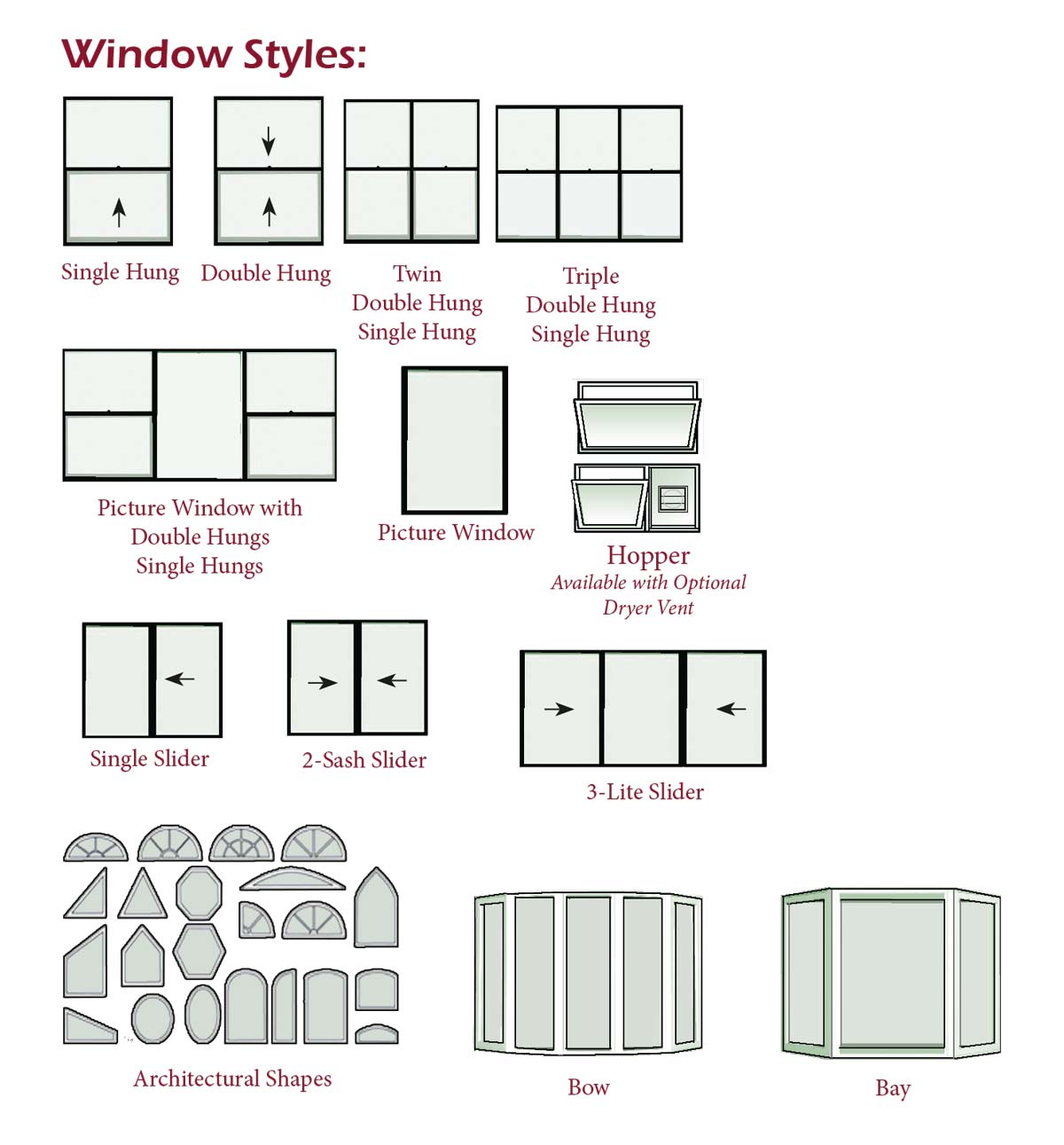

Interstate Model 5100 New Construction Windows: Single Hung, Slider, Picture Window, Hopper, Bow, Bay, Architectural Shapes Outstanding Energy Efficiency, Strength, Beauty, and Value
Model 5100 New Construction Vinyl Windows feature state-of-the-art materials and precision manufacturing details to create added value and a beautiful appearance.

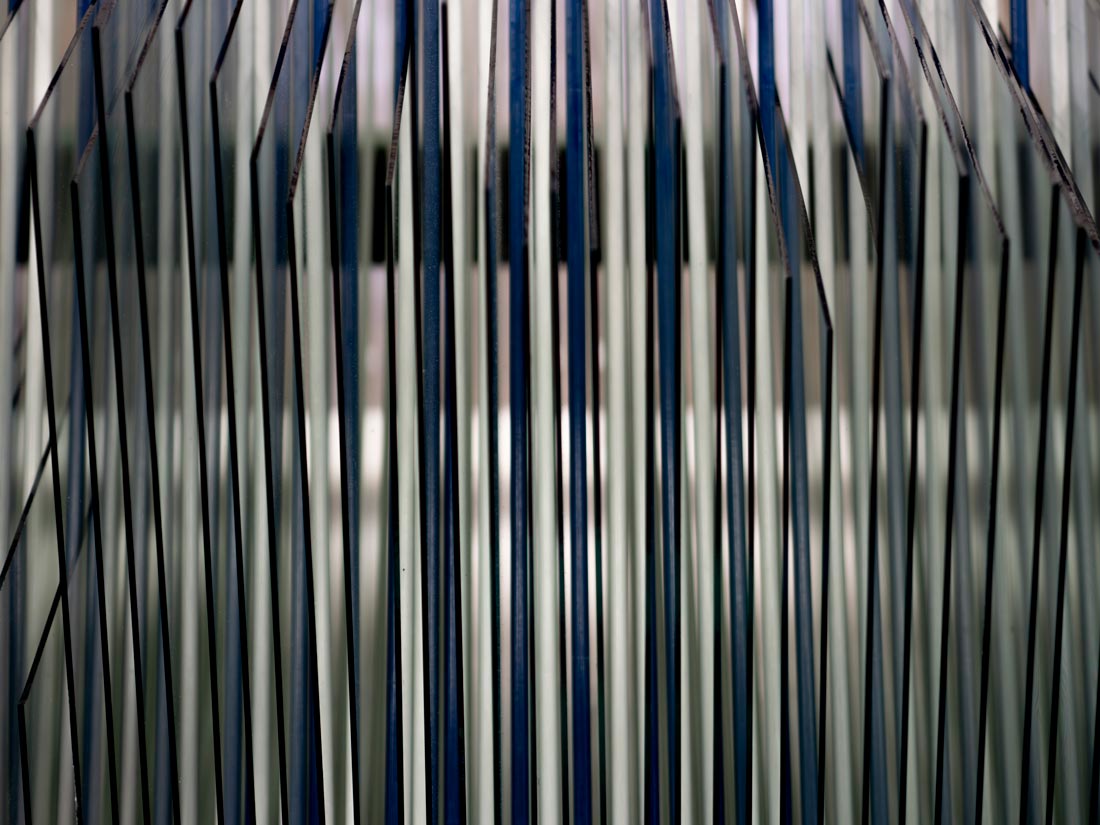

Energy Saver Low E Glass and Argon Gas Add Comfort and Energy Savings
Low E is a transparent metallic oxide coating applied onto a glass surface. The coating allows short-wave energy to pass through but reflects long-wave infrared energy, which lowers the U-value and that means more energy savings. An odorless, colorless, tasteless, non-toxic gas, argon is six times denser than air. It is used to replace air between the glass panes to reduce thermal energy transfer and heat loss.
Interstate’s Energy Saver glass has heat reflective coatings – microscopically thin layers of metal and metal oxide that filter energy by keeping warmth inside in winter and outside in summer. Also available with additional Certified Glass Packages, including Triple pane.Built Tough Hardware

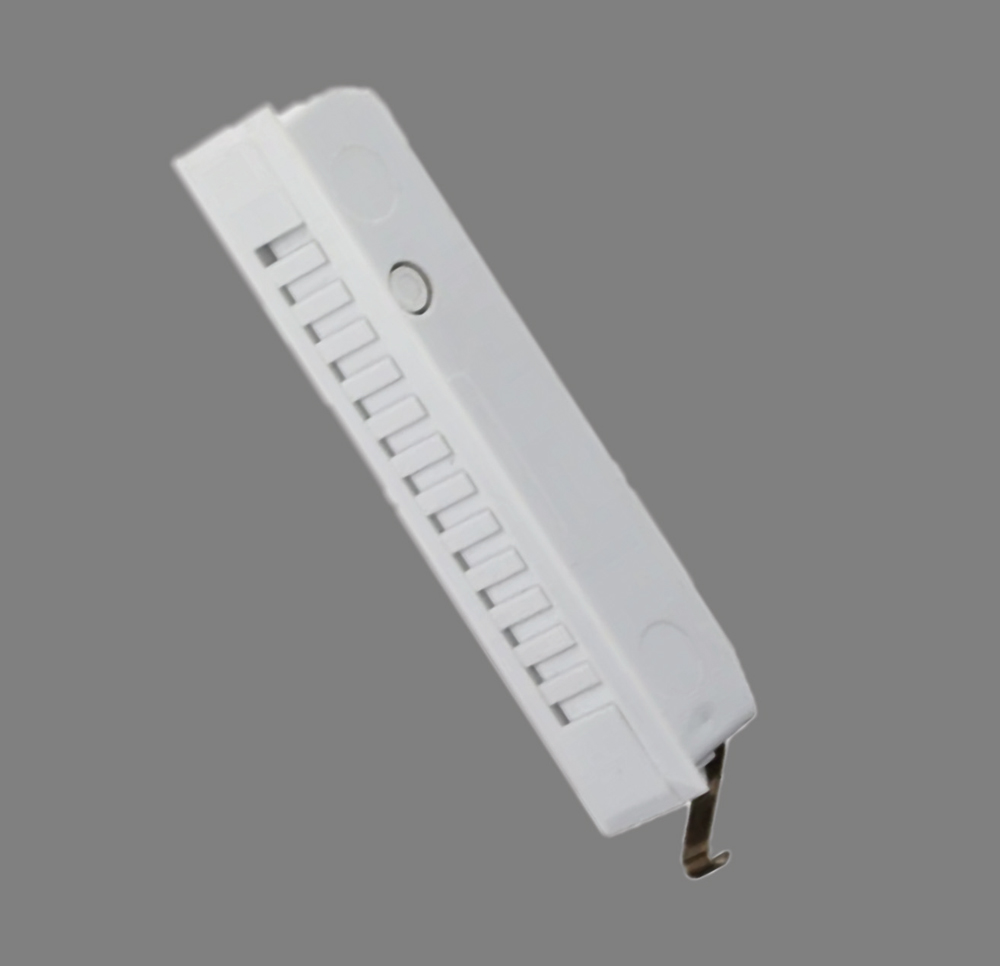

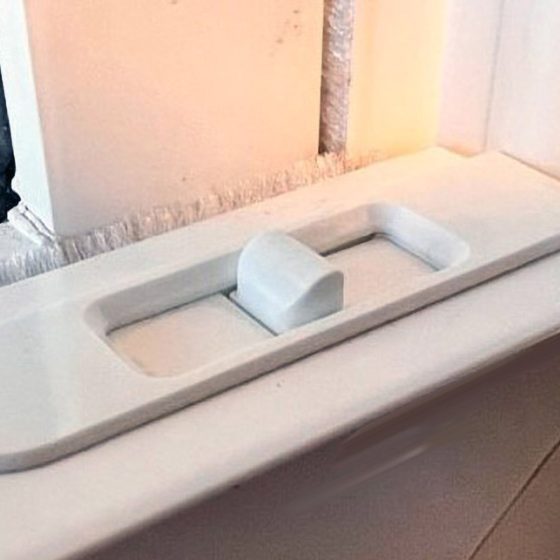

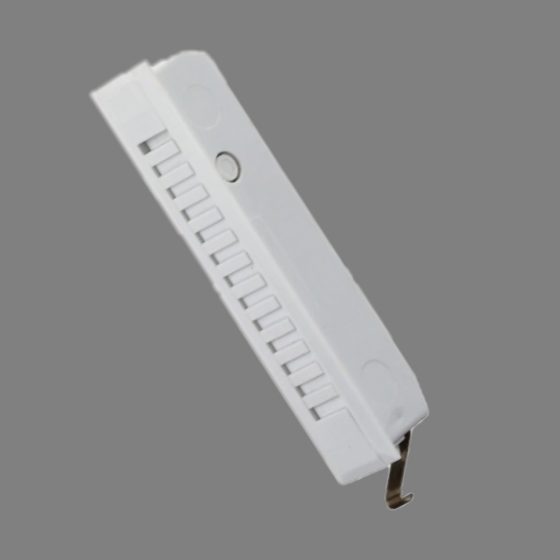

All Interstate vinyl windows come standard with the industry’s finest hardware system. The operators, locks, and hinges have all been developed to work together to meet or exceed maximum performance requirements. Interstate provides the strongest, most attractive, easiest operating and highest performing hardware in today’s market.
Composite Hardware
Internal grids will give your Model 5100 windows the look and feel of true divided lite windows without the hassle! Because they’re between glass panes, these grids never require cleaning. Our beautiful grids are available in both contoured or flat design.
Flat Grid Colors
Contoured Grid Colors
2 1/4” Large Brickmold
A large traditional exterior brickmold window frame surround is factory cut to size and precision welded into one piece, then easily applied after window installation, creating a beautiful and maintenance free finish solution. It includes an integral j-channel around the entire perimeter to accept siding up to ¾”.

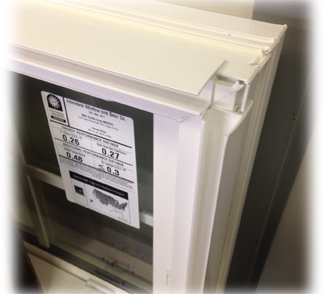

Dry Wall Return
Factory applied accessory accepts 1/2” to 5/8” drywall to assure a quality and consistent drywall finish application.
3½” New England Large Flat Casing
A classic large New England colonial exterior window frame surround is factory cut to size and precision welded into one piece, then easily applied after window installation, creating a beautiful and maintenance free New England casing finish solution. It includes an integral j-channel around the entire perimeter to accept siding up to ¾”.
Continuous Head & Sill
Twin and triple windows are elegantly fitted into one continuous master frame for ease of installation and weather tightness.
Bullnose Sill Trim
Bullnose Sill Trim is field applied with ease to finish the window sill when 3½” flat casing or large brickmold are utilized.
Extension Jambs
Factory applied extension jambs available in 4 9/16”, 6 9/16” and custom sizes to complete interior finish.
