Model 5000

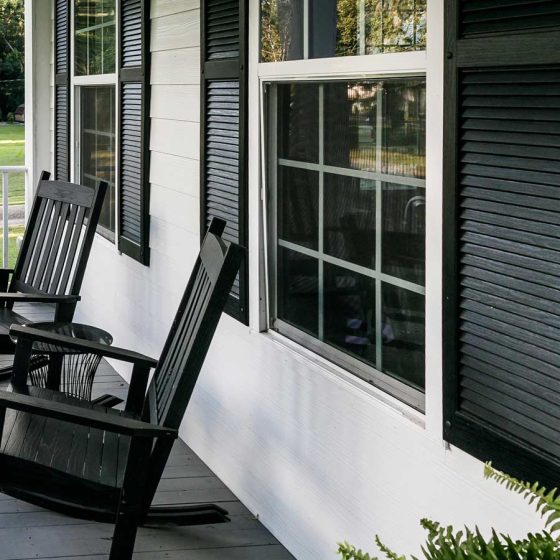

Interstate Model 5000 vinyl replacement windows feature state-of-the-art materials and precision manufacturing details to create added value and a beautiful appearance.
Available in Single Hung, Single Slider, 3-Lite Slider, Picture Window and Architectural Shapes.
Window Features
Fully welded frame & sash

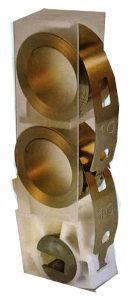

New Light Lift™ SP Sash Balance System
Duralite™ warm edge insulated glass spacer system
Full lift handle
True sloped sill
3/4” insulated glass
Optional Low E/Argon gas
Optional grids between glass
Exterior glazed
White only
Beveled exterior profile
Custom Sizes
Half screen standard; optional full screen
3 1/4” jamb
Replacement only

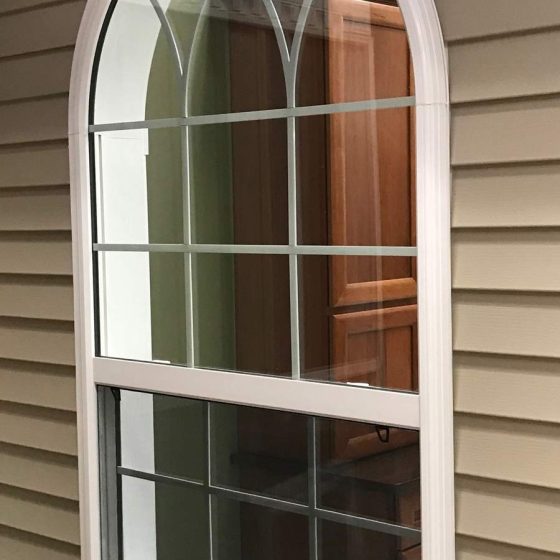

Available in Single Hung, Single Slider, 3-Lite Slider, Picture Window and Architectural Shapes
Glass

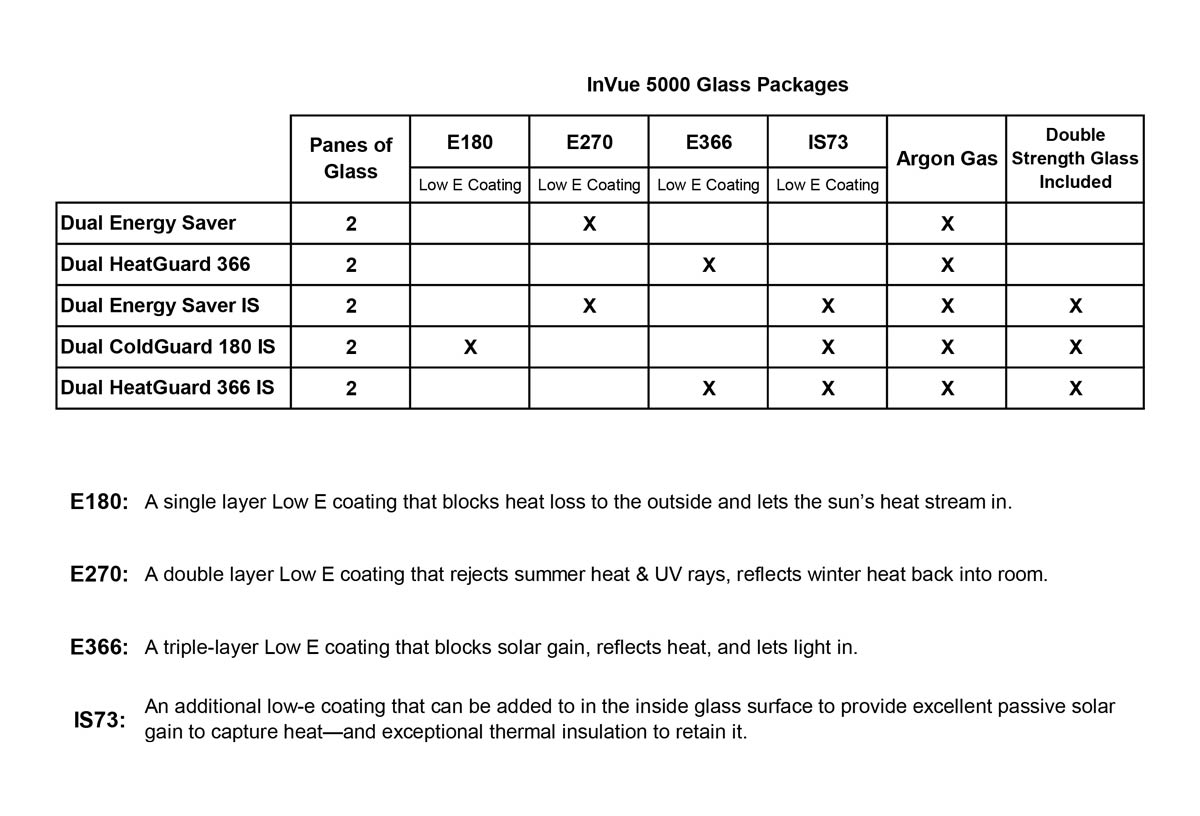

Energy Saver Low E Glass and Argon Gas Add Comfort and Energy Savings
Low E is a transparent metallic oxide coating applied onto a glass surface. The coating allows short-wave energy to pass through but reflects long-wave infrared energy, which lowers the U-value and that means more energy savings. An odorless, colorless, tasteless, non-toxic gas, argon is six times denser than air. It is used to replace air between the glass panes to reduce thermal energy transfer and heat loss.
Interstate’s Energy Saver glass has heat reflective coatings – microscopically thin layers of metal and metal oxide that filter energy by keeping warmth inside in winter and outside in summer. Also available with additional Certified Glass Packages, including Triple pane.Hardware
Built Tough Hardware
All Interstate vinyl windows come standard with the industry’s finest hardware system. The operators, locks, and hinges have all been developed to work together to meet or exceed maximum performance requirements. Interstate provides the strongest, most attractive, easiest operating and highest performing hardware in today’s market.
Locks

Grid Options
Internal grids will give your Model 5000 windows the look and feel of true divided lite windows without the hassle! Because they’re between glass panes, these grids never require cleaning. Our beautiful grids are available in both contoured or flat design.


Flat Grid Colors
White
Grids Between Glass (GBGs)Contoured Grid Colors
White
Grids Between Glass (GBGs)
Protecting Our Environment & Our Community
Energy Efficiency at Interstate
Our products and processes emphasize energy savings – and that means we consume less energy to minimize the CO2 released into our environment.
Our buildings save energy by utilizing in-floor radiant heating during off-peak energy hours and by using motion controlled lighting.
Our processes conserve resources – like filtering and reusing glass wash water for glass rinsing, and recycling our vinyl and glass scrap created during the fabrication process. And of course, we have a recycling program for metals, cardboard and paper.
Interstate belongs to a voluntary energy cooperative that monitors and helps reduce energy usage during times of peak demand. We are helping to protect our community from blackouts, to keep energy rates stable and to help the environment by reducing reliance on peaking power plants.
